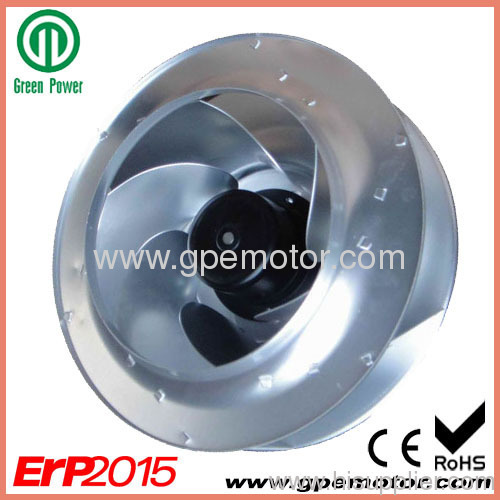

230V EC Centrifugal Fan for air conditioning system-RB3G500
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
R3BE500/174
Production Capacity:
5000PCS per month
Delivery Date:
30 days for 10000 pcs After...
Certification:
CSA
Material(Housing):
Sheet aluminium
approvals:
CCC,CE
Impeller Dimension:
500mm
power:
265W
speed:
810RPM
Means of Transport:
Ocean,Land,Air
Packing:
PALLET
Type:
Air Handling Unit
Brand Name:
Green Power
Type of protection:
IP54
Insulation class:
B
Blade height:
175mm
USES:
ventilation
weight:
8.8KGS
EC Fan has backward curved blades are popular to replace the traditional AC Fan technology in ventilation,air-conditioning,refrigeration systems.
Precision air conditioning 500mm EC Centifugal Fan with speed and temperature control -R3G500
115V EC Centrifugal Fan RB3G500 technical detail:
Rated voltage: 115/230VAC
Frequency :50/60HZ
Rated voltage range: 207-253W
Power input :265W
Speed: 810RPM
Airflow: 5360 M3/H
Current draw:1.63A
Noise:72dBA
Min.ambient temperature:-25oC
Max.ambient temperature:60oC
Net weight:8.8KGS
Backward curved blades EC Centrifugal fans for Precision air conditioning
Impeller Dimension: 500mm, Blade height:175mm
EC Centrifugal Fan 19'' with Backward curved blades and temperature control air curve chart
230V EC Centrifugal Fan are widely used for Precision air-conditioning systems.
Precision air-conditioning systems regulate temperature and humidity for sensitive technology precisely to the last degree. In data centres and mobile phone network exchanges, their cost-efficient, continuous operation reliably ensures the high availability of computer systems.
