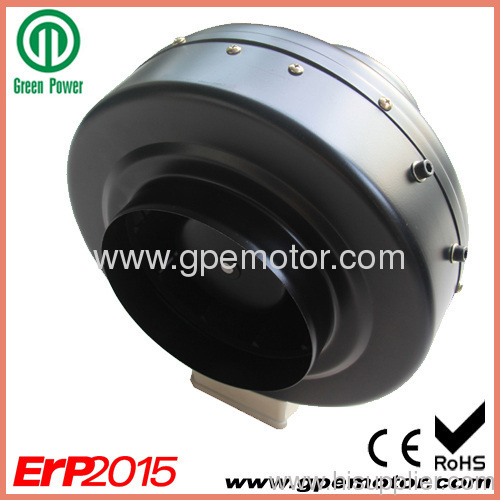

10' Tube ventilation 48V Brushles DC Circular Duct Fan
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
CDFD250
Production Capacity:
2000-5000PCS per month
Delivery Date:
20~25 days
Type:
Turbo Blower
Pressure:
Low Pressure
Rated Power:
107W
Voltage:
24VDC or 48VDC
Speed:
100% controllable by 0-10V/...
Means of Transport:
Ocean,Land,Air
Packing:
Carton/Pallet
Application:
Fan Blower
Power Source:
Electric Blower
Brand Name:
Green Power
Rated Voltage:
48V
Voltage range:
16V~75V
Outlet size:
250mm (100 ~315 optional)
Brushless DC Duct Fan with 100% controllable by 0-10VDC and PWM signal, high volume, energy-saving 30% with EC backward curved fan, ErP2015 compliant
The advantages of Brushless DC Circular Duct Fan with EC Centrifugal Fan :
·Higher efficiency at full speed-at 50% reduction in motor speed gives an 87.5% reducion in power usage.
·Continuous speed control across the full operating range giving on increased tolerance to high and low pressure.
·Power input lost as heat is reduced by 1/3 compared to a conventional AC Fan.
· Intelligent electronic control and make your products more competitive
250 Brushless DC Circular Duct Fan
| Model | Impeller size (mm) | Voltage
(DC) | Voltage range | Airflow
(CMH) (CFM) | Power
(Watt) | Current
(Amp) | Speed (RPM) | Static Pres.(Pa) | Noise
(dB) | Package Size (cm) | N.W/G.W
(kg) |
| CDFD250 | 250x56-DC92 | 48V | up-72Vdc | 1115 | 646.7 | 107 | 2 | 2740 | 660 | 55 | 38x36x27 | 3.9 / 5.9 |
Brushless DC In-line Circular Duct Fan / DC Tube Fan with DC centrifugal fan are widely use for HVAC system
as well as industrial and portable air conditioning; in air cooling for variable frequency drives (VFD), wind power generators and power converters, solar inverters, uninterruptable power supplies (UPS), transformers, heat sinks, fan coils, telecom racks and other industrial equipment; in air handling units and fan filter units (FFU); and in railway, marine, military and avionics equipment.
250 Brushless DC Circular Duct Fan / DC Tube Fan with DC centrifugal fan drawing:
