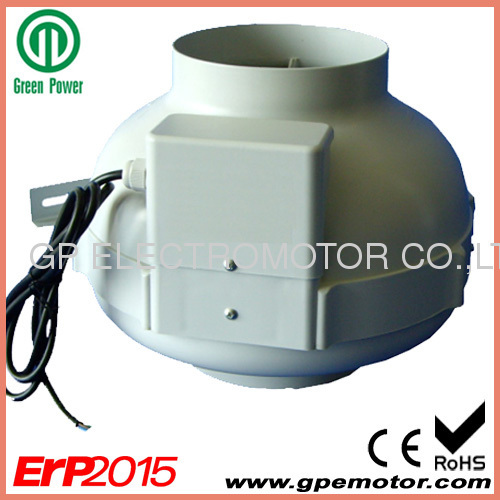

2 speed AC 8" inline tube fan with outer rotor motor UL from China manufacturer

2 speed AC 8" inline tube fan with outer rotor motor UL

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CDRA200

Production Capacity: 5000PCS per month

Delivery Date: 20~25 days

Certification: CE

Cooling/Heating: Others

Dimension: 8"/200

Type of protection: IP44

Operation Temperature: -10° C to 40° C

Motor: AC external rotor Motor

Means of Transport: Ocean,Land,Air

Packing: Carton/Pallet

Type: Others

Capacity: Others

Brand Name: Green Power

Material: ABS Plastic casing

Insulation class: "B" or "F"

Speed: single or three

Airflow: 522CFM

High quality, Low sound levels, Easy installation and well designed useful accessories, 4"/100, 5"/125, 6"/150, 8"/200, 10"/250 & 12"/ 315mm sizes

1. 4'/100, 5'/125, 6'/150, 6.3'/160, 8'/200, 10'/250 & 12.6'/ 315mm Outlet sizes available
2. Material:Backward Curved Centrifugal Fan with AC external rotor motor.
3. Casing Materials:ABS Plastic; Inclu. ABS terminal box.
4. Color available: black, white
5. Type of protection: IP44
6. Bearings: Maintenance-free ball bearings
7. Insulation class: "B" or "F"
8. Operation Temperature: -25° C to 60° C
9. Approval: EMC: EN60335-1; CE, CCC
10. Mounting: Instalation to the wall or ceiling can be performed by means of mounting brackets or holders.

Model	Impeller size (mm)	Voltage (DC)	Airflow (CMH) (CFM)		Power (Watt)	Current (Amp)	Speed (RPM)	Static Pres.(Pa)	Noise (dB)	Package Size (cm)	N.W/G.W (kg)
CDRA100	190x45-AC92	230V 50Hz	380	220.4	59	0.27	2530	365	66	30x26.5x23.5	2.2 / 3.2
CDRA125	190x45-AC92	230V 50Hz	420	243.6	61	0.28	2550	310	67	30x26.5x23.5	2.3 / 3.3
CDRA150	220x45-AC92	230V 50Hz	840	487.2	103	0.45	2660	340	68	36x28.5x24	2.6 / 3.8
CDRA160	220x45-AC92	230V 50Hz	855	495.9	103	0.45	2660	345	69	36x28.5x24	2.7 / 3.9
CDRA200	250x45-AC92	230V 50Hz	900	522	116	0.52	2550	380	71	38x36x27	4.2 / 5.8
CDRA250	250x56-AC92	230V 50Hz	1120	632	158	0.71	2600	570	72	38x36x27	4.5 / 6.0
CDRA315	280x80-AC92	230V 50Hz	1600	928	255	1.14	2660	710	74	45x40x35	5.0 / 7.0
