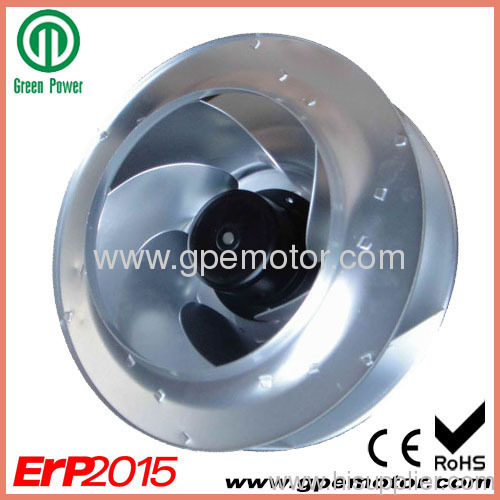

Brushless EC Centrifugal Fan for Containment room Cabinet
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
R3BE400/112A
Production Capacity:
5000PCS per month
Delivery Date:
30 days for 5000 pcs After ...
Certification:
RoHS
Material:
Galvanised sheet steel
approvals:
CCC,CE
Impeller Dimension:
400mm
power:
355W
speed:
1380RPM
Means of Transport:
Ocean,Land,Air
Packing:
PALLET
Type:
Air Handling Unit
Brand Name:
Green Power
Type of protection:
IP42
Insulation class:
B
weight:
6.2KGS
USES:
ventilation
Blade height:
70mm
EC backward curved Centrifugal Fan with High Efficiency ,impeller diameter from 133 to 500.0-10V and PWM Speed regulation,Integrated protection.
High Performance EC Centrifugal Fans
·Backward curved EC fans offering maximum efficiency, minimum energy consumption, fully controllable and ErP2015 compliant.
·More cost effective and safer;low consumption levels with very high performance.
·Compact design, easy installation and long service life
·Develop fast and specific solutions for our clients
Containment Rooms Cabinet EC Motorized Centrifugal Fan for clean room 230V data sheet
| Rated voltage | 230 | 115 | VAC |
| Frequency | 50/60 | 50/60 | Hz |
| Rated voltage range | 207~253 | 92~125 | VAC |
| Power input | 355 | 385 | W |
| Speed | 1380 | 1450 | RPM |
| Airflow | 3720 | 3690 | M3/H |
| Current draw | 2.30 | 4.50 | A |
| Noise | 72 | 72 | dBA |
| Min.ambient temperature | -25 | -25 | oC |
| Max.ambient temperature | 60 | 60 | oC |
| Net weight | 6.2 | 6.2 | kg |
Containment Rooms Cabinet EC Motorized Centrifugal Fan for clean room 230V technical drawing:
Containment Rooms Cabinet EC Motorized Centrifugal Fan for clean room 230V packing photo:
Application:
Energy-saving Containment Rooms Cabinet EC Motorized Centrifugal Fan with backward curved blade
·Pharmaceuticals and chemical research laboratories.
·Nuclear industry.
·Food processing industry.
·Assembly and cleaning tasks in industry and research, laboratories, universities, pathology departments, authorities.
·University clinics
