energy-save DC Centrifugal Fan with BLDC Integrated motor from China manufacturer

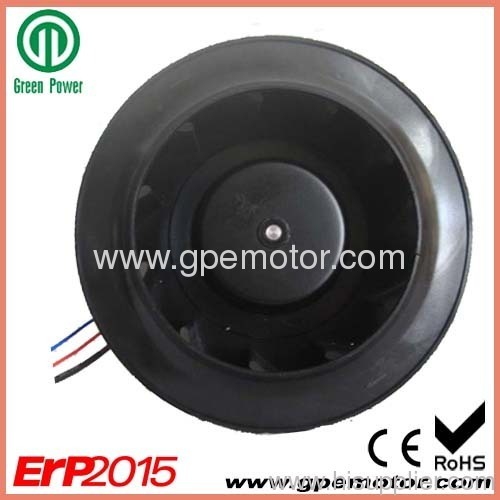

energy-save DC Centrifugal Fan with BLDC Integrated motor

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: R1BE225/063

Production Capacity: 10000PCS per month

Delivery Date: 30 days for 10000 pcs After...

Certification: RoHS

Material: Fibreglass-reinforced PP

approvals: CCC,CE

Impeller Dimension: 225mm

weight: 1.5KGS

USES: ventilation

Means of Transport: Ocean,Land,Air

Packing: PALLET

Type: Industrial Fan Heater

Brand Name: Green Power

Type of protection: IP42

Insulation class: B

Blade height: 63mm

power: 95W/100W

speed: 2600RPM/2700RPM

Quality Approvals:EC,CCC
Service:supply the special one by design
Small Orders Accepted
High efficiency,Low Noise
lower running cost,inner driver

Electrical

DC Centrifugal fans with backward curved blades

Impeller Dimension: 225mm, Blade height:63mm

Nominal data	curve	normal voltage	Power input	Current draw	Air flow	Speed	Perm.amb temp	Sound pressure level		Weight
Nominal data	curve	normal voltage	Power input	Current draw	Air flow	Speed	Perm.amb temp	Sound pressure level		Weight
Type		VDC	W	A	M3/h	rpm	℃	dB(A)		KG
R1BE225/063		24	100	4.17	1125	2600	-25~+60	67	CCW	1.5
		48	95	1.98	1130	2700	-25~+60	67		1.5

Cable colour	Function	Cable colour	Function
Red	+Ub	White	0~10VDC/PWM
Blue	GND	Yellow	TACH OUTPUT 3PULES/REV

Applications
Ventilation Equipment & System
Heating Equipment & System
Air Conditioner
Refrigeration equipment
MDBS(Mobile Data Base Station)
Telecom power supply station

Benefits
High Efficiency
High-Performance
Low Noise
Long Life
Economical in design and operation.

For detailed drawings and specifications, Give us a call or e-mail us.
