133-400mm DC Centrifugal Fan with 48V BLDC motor R1G400
Payment Terms: |
T/T,L/C |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
R1BE400/091
Production Capacity:
15000PCS per month
Delivery Date:
30 days for 10000 pcs After...
Certification:
RoHS
Material:
Sheet aluminium
approvals:
CCC,CE
Impeller Dimension:
400mm
weight:
5.0KGS
USES:
ventilation
Means of Transport:
Ocean,Land,Air
Packing:
PALLET
Type:
Cabinet Air Conditioner
Brand Name:
Green Power
Type of protection:
IP42
Insulation class:
B
Blade height:
91mm
power:
200W
speed:
1290RPM
EC Fan from GP are widely used for air handler ,such as Telecommunications,Server Rooms & Data Centers,FFU-Fan Filter Units,Clean Rooms,HVAC System
Electrical

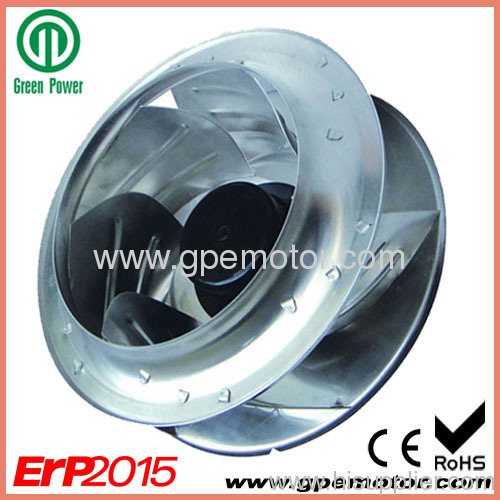

Centrifugal Fan with backward curved blades
Impeller Dimension: 400mm, Blade height:91mm
Nominal data | curve | normal voltage | Power input | Current draw | Air flow | Speed | Perm.amb temp | Sound pressure level | | Weight |
|
Type | | VDC | W | A | M3/h | rpm | ℃ | dB(A) | | KG |
R1BE400/091 | | 48 | 200 | 4.17 | 3000 | 1290 | -25~+60 | 65 | CCW | 5.0 |
Cable colour | Function | Cable colour | Function |
Red | +Ub | White | 0~10VDC/PWM |
Blue | GND | Yellow | TACH OUTPUT 3PULES/REV |
More information of DC CENTRIFUGAL FAN RB1D-400/091 KM35
Applications
Ventilation Equipment & System
Heating Equipment & System
Air Conditioner
Refrigeration equipment
MDBS(Mobile Data Base Station)
Telecom power supply station
Benefits
High Efficiency
High-Performance
Low Noise
Long Life
Economical in design and operation.
For detailed drawings and specifications, Give us a call or e-mail us.
