EC Fan coil unit Motor 230V with 0-10V speed control from China manufacturer

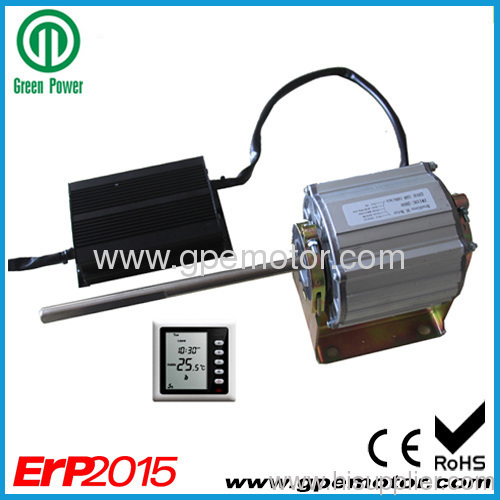

EC Fan coil unit Motor 230V with 0-10V speed control

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Carton/Pallet

Type: Air Curtain

Brand Name: Green Power

Speed control: 0-10V / PWM

Power: 60W to 1hp

Production Capacity: 5000pcs/M

Delivery Date: 20~25 days

Certification: CE

Voltage of power supply: AC230V 50/60Hz

Speed: 1300

Shaft: Single or Double

EC 230V 50/60Hz, Speed Control, Brushless Motor,High efficiency of 85%,100% variable speed controllable,Integrated motor protection,Variable Speed.

Fan coil unit control system EC Motor with brushless motor benefit:
This electronically commutated (EC) motor with inner rotor offer 85% high efficiency, offer 58~65% more energy savings compared to using conventional motors, leading to lower input power and save your money; offer easy, quiet, efficient speed control (0-10V/PWM);Intelligent electronic control; Longer motor life resulting from lower running temperatures., Longer motor life and make your products more competitive;Additional functions for choice , such as pressure control, temperature control, etc.

230V EC Motor with inner rotor with speed and temperature control forfan coil unit control system data sheet

Model	Rated Voltage (VAC)	Frequency (Hz)	Rated Speed (RPM))	Speed control	Rated Power (Watt)	Rated Current (A)	Ambient Temp. (oC)	Ambient RH %	N.W (kg)
ECI-113D/S-60	220	50 / 60	1300	0-10V/PWM	60W	0.51	-20 ~ +40	5% - 85%	4.7
ECI-113D/S-120	220	50 / 60	1400	0-10V/PWM	120W	0.70	-20 ~ +40	5% - 85%	4.8
ECI-113D/S-150	220	50 / 60	1400	0-10V/PWM	150W	0.90	-20 ~ +40	5% - 85%	5.0
ECI-113D/S-180	220	50 / 60	1400	0-10V/PWM	180W-1/4hp	1.20	-20 ~ +40	5% - 85%	5.2
ECI-113D/S-XX	220	50 / 60	1400	0-10V/PWM	1/2hp, 3/4hp, 1hp optional		-20 ~ +40	5% - 85%

Fan coil unit control system EC Motor with brushless motor technical drawing:

230V EC Motor with inner rotor with speed and temperature control forfan coil unit control system

230V EC Motor with inner rotor with speed and temperature control forfan coil unit control system

The another advantage is Fan coil unit control EC motor which can be connected directly to an AC mains supply, making them easy to substitute for inefficient AC motor and fan. Several Motor can be connected to the same controller providing the total rating of the controller is not exceeded.

EC Motor with brushless motor for Fan coil unit control system
230V EC Motor with inner rotor with speed and temperature control forfan coil unit control system
