Lower consumption ESM motor to replace PSC induction motor from China manufacturer

Lower consumption ESM motor to replace PSC induction motor

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ESM19

Production Capacity: 20000pcs/m

Delivery Date: 20~25days

Capacity Type: Others

Brand Name: Green Power

Output power: up to 25W

Type of protection: IP65

Operation Temperature: -30° C to 50° C

Approvals: CE, CCC

Means of Transport: Ocean,Land,Air

Packing: Carton/Pallet

Category: Ice Machine

Certification: CE

Voltage: 230V 50/60Hz

Speed Range: 300 to 2300rpm

Insulation Class: B

Bearing: Maintenance-free ball beari...

Applications: Air Handlers, Gas Furnaces,...

Average 80% higher efficiency, EC technology, Multipe speed and easy to replace normal Shaded pole OEM motors and PSC motor, ErP2015 compliant

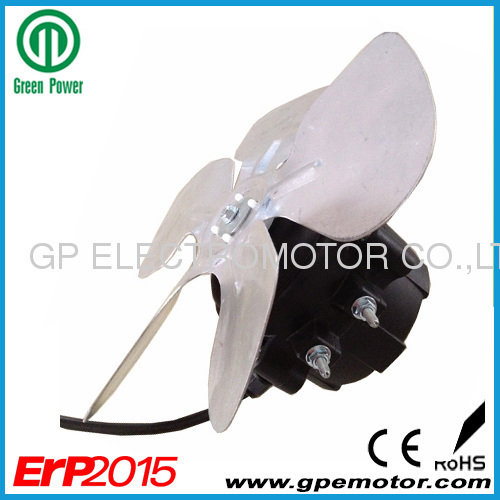

GP ESM motor and fan for refrigerator~ESM Motor or ECM Motor
High-efficiency ( 75% ), Energy-saving 65% , Long life-time, Low noise level and easy to connect.

ESM motor and fan~ESM Motor or ECM Motor Primary Competitive Advantages:

·Over and under voltage protection available

·Average 30~ 40% higher efficiency than shade pole

·replacement with normal Shaded pole OEM motors and PSC motor

·save the user up to 65 % in energy usage
·lower energy usage

·low emission level,

·Efficiency improved

·longer motor life and competitive price

GP EC Motor ~ESM Motor or ECM Motor data sheet

Model	Voltage Range	Frequency	Rated Power	Output power	Speed	Axial Impeller	22O	28O	31O	Dimensions	Bracket	Ambient Temperature	IP level
Model	(VAC)	(Hz)	(Watt)	(Watt)	(RPM)	ΦA	ΦB	ΦB	ΦB	A	H	OC	IP level
ESM19	220-240	50/60	30	19	1250	300	35	44	48	97	72	-30° C to 50° C	65
	220-240	50/60			1300	300	35	44	48		72	-30° C to 50° C
	220-240	50/60			1450	254	35	41	44		72	-30° C to 50° C
	220-240	50/60			1550	254	35	41	44		72	-30° C to 50° C
	220-240	50/60			1800	230	33	39	42		52	-30° C to 50° C
ESM20-20	115-127	50/60	32	20	1250	300	35	44	48	97	72	-30° C to 50° C	65
	115-127	50/60			1300	300	35	44	48		72	-30° C to 50° C
	115-127	50/60			1450	254	35	41	44		72	-30° C to 50° C
	115-127	50/60			1550	254	35	41	44		72	-30° C to 50° C
	115-127	50/60			1800	230	33	39	42		72	-30° C to 50° C

High Efficiency ECM Fan Motors (Condensing EC Motor ) ~ESM Motor or ECM Motor

HVAC Applications, such as Air Handlers, Gas Furnaces, Unit Coolers, Evaporators and Dehumidifiers

EC motors are designed as adirect drop in replacement for normal (4 pole) Shaded pole and PSC motors.

They provide the same output performance with input power reductions of up to 70% which saves valuable energy costs and reduces the amount of CO² emissions.

Gas Furnaces use ECM motor ~ESM Motor or ECM Motor
Gas Furnaces Condensing EC Motor with high efficiency for HVAC

Gas Furnaces Condensing EC Motor with high efficiency for HVAC

In addition to the natural gas savings, a reduction of 20% to 30 %of the electricity used by the furnace fan can be obtained by selecting the variable speed brushless Direct Current Electronically Commutated Motor (DC ECM) blower motor, an alternative to the AC induction motor.
