High airflow air conditioner EC Axial flow Fan 630 impeller from China manufacturer

High airflow air conditioner EC Axial flow Fan 630 impeller

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: A3SE630W/S

Production Capacity: 5000PCS per month

Delivery Date: 30 days for 5000 pcs After ...

Certification: UL

Material(Housing): Metal sheet

approvals: CCC,CE

Impeller Dimension: 630mm

USES: ventilation

weight: 21KGS

Means of Transport: Ocean,Land,Air

Packing: PALLET

Type: Cabinet Air Conditioner

Brand Name: Green Power

Type of protection: IP54

Insulation class: B

power: 780W

speed: 960RPM

Airflow: 13200m3/h

EC Axial flow Fan from GP Motor with High Efficiency ,impeller diameter from 250 to 910.0-10V and PWM Speed regulation,Integrated protection.

Advantages of EC Axial flow Fan

1. Can save 1/3 energy than AC equivalent, Save your money.
2. Low motor temperature: for longer lifetime than AC equivalent;
3. 100% speed controllable, not frequency dependence.
4. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal;
5. Electronic & power transformations are completely integrated within the motor.;
6. Speed can be driven up to 3600rpm, one EC fan replace multiple type of motors (2, 4 and 6 pole);
7. Easy connection : No complicated wiring and set-up with a frequency controller.

BLDC 230V EC Axial Fan impeller 630mm with speed control by design technical detail

Rated voltage	1-230	VAC
Frequency	50/60	Hz
Rated voltage range	200~277	VAC
Power input	740	W
Speed	960	RPM
Airflow	13200	M3/H
Current draw	3.40	A
Noise	75	dB
Min.ambient temperature	-25	oC
Max.ambient temperature	60	oC
Net weight	21.0	kg

BLDC 230V EC Axial Fan impeller 630mm with speed control by design technical drawing

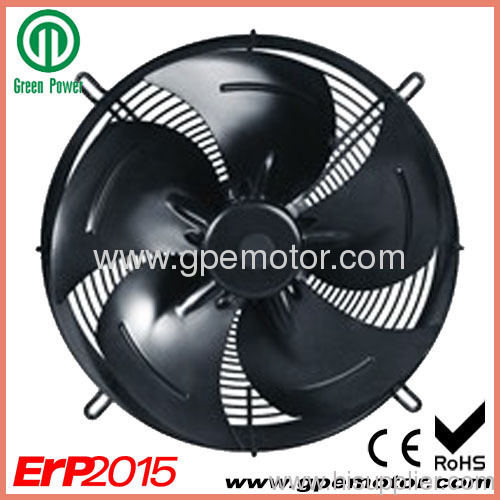

High pressure 380V 630 EC Axial Fan impeller with speed control by design W3G630

High pressure 380V 630 EC Axial Fan impeller with speed control by design W3G630

GP EC Axial Fan application:
Telecom of the sensitive transmission technology stable can be kept by telecommunication air-conditioning systems in switch cabinets, containers and shelters.
It supply for the mobile phone base stations which installed in the tiniest space on roofs, towers or masts.Saving 30-40% energy,simple control,High efficiency and lower noise.
