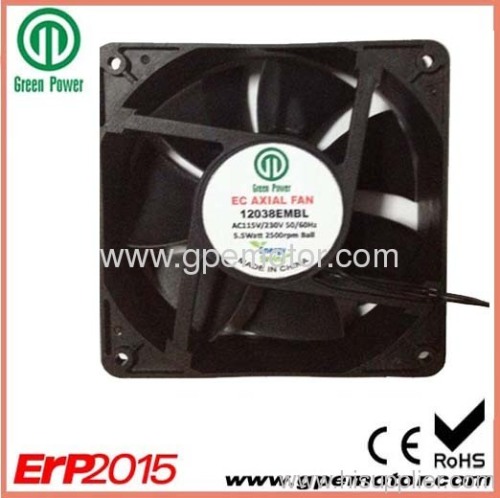

EC Cooling Fan with electronic control motor and high speed from China manufacturer

EC Cooling Fan with electronic control motor and high speed

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 12038EUBL

Production Capacity: 20000-30000PCS per month

Delivery Date: 30 days for 10000 pcs After...

Frame size: 120x120x38mm

Material(Impeller): Plastic (UL94V-0)

Operation temperature: -10oC~+75oC

Bearing System: Ball

Speed (RPM): 3000

Means of Transport: Ocean,Land,Air

Packing: PALLET

Brand Name: Green Power

Material(Housing): Die-cast Aluminum

Motor: 4 poles brushless dc motor

Storage temperature: -40oC~+105oC

Rated Voltage (VDC): AC110 or AC220 (AC110 -240...

AirFlow: 170CFM

GP Fans offer a quiet and compact air moving solution with EC and DC technology.EC fan can save 30-40% energy than traditional AC Fan and meet ErP2015

EC Cooling Fan with electronic controlling motor,High-efficiency, energy-saving 80%, Constant speed.

EC Series Compact cooling fan is replace the traditional AC or DC compact fans,It has electronic controlling technology and 4 poles brushless dc motor. Its efficiency is much higher, it can reduce the emission of CO2 effectively. The constant speed with the different of voltage from 100 to 240VAC, waterproof, etc.

Technical Features of EC cooling Fan 12038EUBL

Frame size		120x120x38mm
Housing		Die-cast Aluminum
Impeller		Plastic (UL94V-0)
Motor		4 poles brushless dc motor
Operation temperature		-10oC~+75oC
Storage temperature		-40oC~+105oC
Lead Wire		UL1007#24AWG
Bearing System		BALL
Rated Voltage (VDC)		AC110 or AC220 (AC110 -240)
Input Power (W)		11.5
Speed (RPM)		3000
Pressure		0.65 In H2O
AirFlow		170CFM
Noise Level (dB)		55
N.W (kg)		0.41
