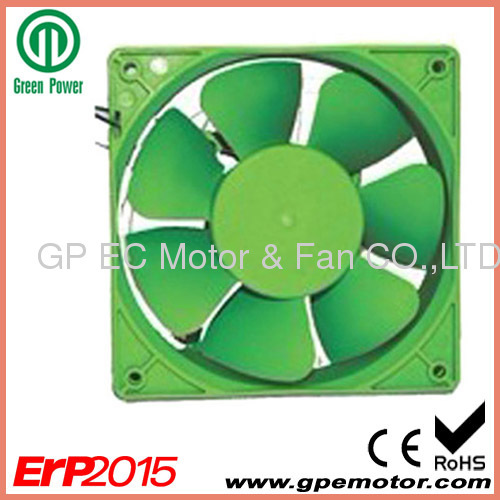

12038 constant airflow EC Cooling Fan 230V for IT industry

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 12038EHBL
Production Capacity: 20000-30000PCS per month
Delivery Date: 30 days for 10000 pcs After...
Frame size: 120x120x38mm
Material(Impeller): Plastic (UL94V-0)
Operation temperature: -10oC~+75oC
Bearing System: Ball
Speed (RPM): 2500
Means of Transport: Ocean,Land,Air
Packing: PALLET
Brand Name: Green Power
Material(Housing): Die-cast Aluminum
Motor: 4 poles brushless dc motor
Storage temperature: -40oC~+105oC
Rated Voltage (VDC): AC110 or AC220 (AC110 -240...
AirFlow: 142CFM

EC Cooling Fans with electronic controlling motor, High-efficiency, energy-saving 80%, Constant speed.They are widely used for IT & telecommunications

EC cooling fan from GP is the take place of traditional AC or DC compact fans, It has electronic controllingtechnology and 4 poles brushless dc motor.
Waterproof,High efficiency,energy-saving 80% and reduce the emission of CO2 effectively.
The constant speed with the different of voltage from 100VAC to 240VAC .

Technical parameters of EC Cooling Fan 12038EHBL

ModelBearing SystemRated Voltage (VDC)Input Power (W)Speed (RPM)Pressure
mmH2O
In H2O
  AirFlow
CMM       CMH        CFM
Noise Level   (dB)N.W  (kg)
12038EHBLBall  AC110 -2408.1250012.80.514.01510.41


Dimension for EC Cooling Fan 12038EHBL


Primary Competitive Advantages
· 100%intelligent speed controll
· With EC/DC Brushless motor
· Available in AC or EC technology
·Quality Approvals:EC,LVD,CCC
· Service:supply the special one by design
· High hydraulic efficiency, energy-saving and low noise level
·meet ErP2013 and ErP2015

Related Application

Telecommunications
EC Cooling fan from GP Motor Can Save 80% energy than AC version,simple control,High efficiency and lower noise.
As operating temperature of the sensitive transmission technology stable can be kept by telecommunication air-conditioning systems in switch cabinets, containers and shelters.
EC Fans supply for the mobile phone base stations which installed in the tiniest space on roofs, towers or masts.
They are widely used in these air conditioning units in switch cabinets, electrical equipment rooms,containers and shelters,etc.



EC Cooling FanRelated recommend
Metal DC cooling Fan,EC Cooling Fan.
