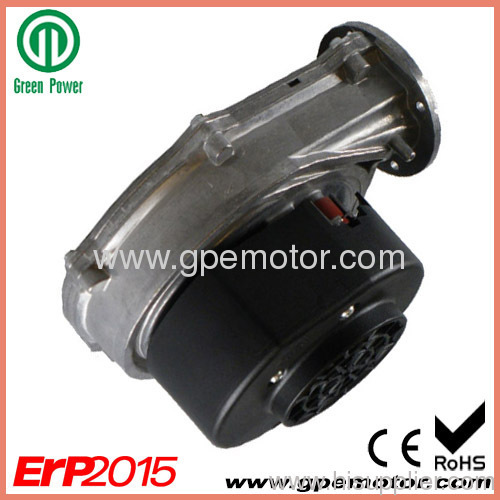

G-RG130 Heater Radial Fan Blower

Price: 35.0 USD
Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: GRD130/0012
Production Capacity: 2000-3000PCS per month
Delivery Date: 30 days for 1000 pcs After ...
Certification: CE
Material: Fire-aluminized sheet steel
approvals: CCC,CE
Impeller Dimension: 130mm
power: 40W
speed: 7200RPM
Means of Transport: Ocean,Land,Air
Packing: PALLET
Type: Others
Brand Name: Green Power
Type of protection: IP44
Insulation class: B
Voltage: 24VDC
AIR FLOW: 110m3/h

Available in 24V, 48V DC input or 230V AC Input, 100% speed controllable and energy-saving, ErP2015 compliant.

EC radial fan is available in 24V, 48VDC, 115V 50/60Hz and 230V 50/60Hz, It is a reduction of approx. 20 percent compared to the AC gas blowers, without a reduction in performance. Speed control:0-10V/PWM signal, preset with potentiometers via a control input.

Applications: Gas or oil-fired heating boilers,wood stove,heat stove and other applications.




Special Features:

· Impeller dimension:130mm

· Material:Die-cast aluminium housing, anti-static plastic impeller and plastic cover

· Rated power:40W

· Rated voltage:24VDC

· Rated speed:7200RPM

· Airflow:110m3/h

· Speed control:0-10V/PWM

· Insulation class:  "F", protection type is IP20

· Brushless DC-motor with integrated electronics

· High hydraulic efficiency, energy-saving and low noise level

ModelVoltage (VDC)Max.Speed (rpm)Input Power (W)Current (Amp)Air Volume (m3/h)Static pressure(Pa)Net(kg)
GRD130/0012247200401.711019001.4


Primary Competitive Advantages:

· Green Product

· Guarantee/Warranty

· International Approvals:EC,LVD,CCC

· Prompt Delivery

· Service:supply the special one by design
· Small Orders Accepted

· Maintenance-free ball bearing, 40000 hours of operation
· Speed recognition: Hall IC signal ouput
 ·Commutation electronics : current limit and reverse battery protection and overload protection

· High efficiency,Low Noise

· Use for Gas or oil-fired heating boilers,wood stove,heat stove ,etc



Technical drawing and Air curve of EC Centrifugal gas Blower GRD130/0012





Applications

Heating


EC Fan and Blower from GP are more popular to replace traditional AC Fan and Blower.
They are widely used for heating system, including gas and oil heaters, solid fuel burners, fuel cells, thermal storage heating stoves, fan heaters, mobile heat generators and heat pumps,etc.
The upper hand of them including specific higher efficient, Lower noise, Maintenance-free, lower working cost,manually controllable variable speed capability and safety.



Packing Photo
