Heat recovery ventilation systems are the controlable and efficient answer to many problems in a tightly sealed modern home.
Families create water vapour by showering cooking washing and breathing. In highly insulated and sealed modern homes this moisture must be extracted to prevent damage to the fabric of the building from condensation and mould. But this is not all , the inhabitants will also suffer as the air quality will be poor and CO2 levels unacceptably high for a healthy living environment.
The high humidity levels provide an excelent environment for dust mites which can increase the likelyhood of asthma and other bronchial conditions.
●Available with forward or backward curved impeller and AC or DC technology. .
●High-efficiency, energy-saving(30%), intelligent, Low noise level.
●Materials: Galvanised sheet steel impeller and scroll housing from 108-225,
●Technical features: Control input 0-10VDC/PWM, tach output, reverse polarity,
Current limited and locked rotor protection, soft start
●the insulation Class is "B"; Type of protection: IP44.
●Operation Temperature: -30° C to 65° C.
●Motor of operation: Continuous(S1), Maintenance-free ball bearings.
●All motors have CE approval and CCC safety certificate.
●Lead Wire: AWG#20 UL 1007:Brown = L, blue = N, Yellow/Green = PE
Red=+10V output, Blue=GND,yellow=PWM/0-10Vdc, White= tach output
●Applications: Telecommunication(FCU and Heat exchanger), cleaning room,
Building ventilation system, HVAC, Railway technology,Purification business

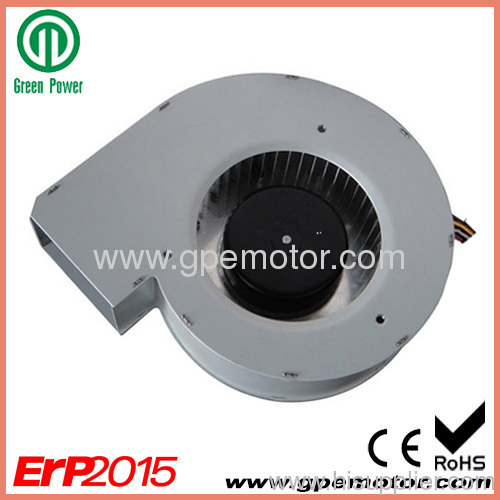

Heat Recovery 230V EC Fan Blower Single inlet with electronically commutated motor-G3G200 data sheet
| Model | Voltage range (VDC) | Voltage (VDC) | Frequency
(Hz) | Airflow (m3/h) | Power (Watt) | Speed (RPM) | Current (Amp) | Noise (dB) | Net
(kg) |
| R3FE200/102 GR3FE200/102 | 200-277 | 230 | 50/60 | 1600 | 495 | 1900 | 3.10 | 77 | 5.3/7.5 |
200EC single inlet
Fan Blower 115V with variable speed-emc technical drawing:
