RS485 FFU EFU fan filter unit BLDC Fan speed controller
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
GPC-BL400
Production Capacity:
20000-30000PCS per month
Delivery Date:
30 days for 10000 pcs After...
Function:
Air Conditioner
Size:
240x68x88mm
Max power:
400W
Communication:
RS485
Means of Transport:
Ocean,Land,Air
Packing:
PALLET
Style:
Others
Brand Name:
Green Power
Input Voltage:
230V 50/60Hz
Speed control:
0~100%
Remote and local:
0~1400rpm
Max.power 400W, RS485 remote and local control MODBUS RTU or Lonworks protocol, 0-10V or PWM speed control, Digital signal output, one to one BLDC Fan
FFU EFU with BLDC Fan and Fan controller
FFUs, favored in semiconductor cleanrooms, are also utilized in flat-panel display (FPD), nanotechnology, high-tech automotive, life sciences, and food industries, as well as in new technologies such as photovoltaic and fuel cell cleanrooms, FFUs are also in use in hospitals and laboratories.
Why FFU EFU use BLDC Fan and Fan controller?
FFU EFU-Fan Filter Units require a smart-motor fan system, an interface to the fan, network consolidation, and PC software customization for each individual installation. At that time, AC systems were unable to match the performance and system integrity of the EC systems and a clear, two-tier system evolved. With the introduction of AC control systems that operate out-of-the-box, "smarts" could be added to AC systems at a nominal cost and thus began the process of closing the gap between the AC and DC solutions.

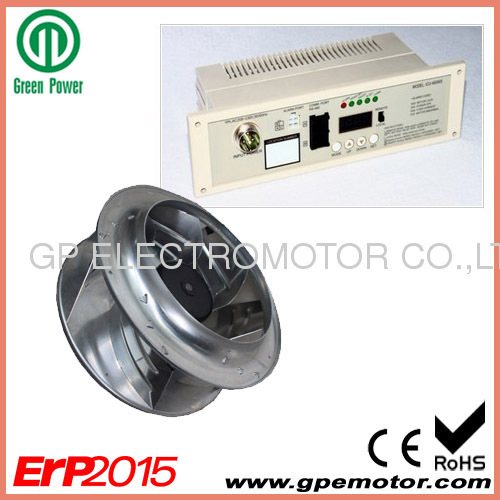

FFU BLDC Fan controller 350W
FFU EFU control system with BLDC Fan and fan controller
FFU EFU with BLDC Fan and fan controller
FFU EFU chart with BLDC Fan and fan controller
Specifications of FFU EFU Fan Filter Unit Brushless DC Motor fan speed controller
Input voltage: AC230V 50/60Hz
Max Power: 400W
Variable Speed: 0~1900rpm by PWM and 0-10VDC
RS485 communication by MODBUS RTU and Lonwork protocol by LISA software
Size: 240x68x88mm
one to one control
FFU EFU Fan Filter Unit BLDC Fan Motors and EC Motors
FFU EFU Fan Filter Unit BLDC Fan and Brushless EC Fan
