| GPBLDM-EUC (BLDC Fan type) | |||||||||
| ● Input Voltage: 220VAC, 50/60Hz | ● Condensation prevention function by temp.sensor | ||||||||
| ● Possible use of on dampers | ● Bathroom exhaust interlocking function | ||||||||
| ● 3 step fan speed control function | ● Room controller application: STR-S1,-D1, -E1 | ||||||||
| ● Fan speed control function for each step | ● PCB Size: 130x95mm | ||||||||
| ● Support RS-485 communication | |||||||||
| ● Possible for home network use | |||||||||

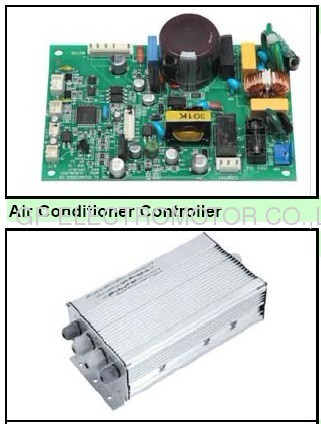

| GP-PFC-100 (BLDC Fan controller for evaporated air cooler) | |||||||||
| ● Input Voltage: 220VAC, 50/60Hz | ● Max.Fan consumption power: 550W (PF:96%) | ||||||||
| ● 3 step fan speed control function | ● Max.pump consumption power: 100W | ||||||||
| ● Fan speed control function for each step | ● Room controller application: STR-S1,-D1, -E1 | ||||||||
| ● Pump control function | ● PCB Size: 200x120x75mm | ||||||||
| ● Use of LCD wired remote control | |||||||||
| ● On/off timer setting function | |||||||||
| ● Motor error detecting function | |||||||||
| |||||
PowerSupply Voltage | 230V+/-20% | ||||
PowerSupply Frequency | 50Hz+/- 5% | ||||
Typeof Application | Fan | ||||
Nominal Output Power @ 1500rpm | 3/4Hp | 1/2HP | 1/3Hp | 1/4Hp | |
Speed Variation | Variable300~3000 rpm | ||||
Min Starting Torque (N.m) | 4 | 3 | 2.5 | 2 | |
MinIP (Ingress Protection) | IP55 | ||||
Environmental Condition | Humidity90% and 45°C | ||||
Min Power Factor (Cos FI) | 0.95 | ||||
Min efficiency @ 1500rpm with drive | 87 | 85 | 83 | 81 | |
Min efficiency @ Minimum Speed with drive | 65 | 64 | 63 | 61 | |
Max noise level | 50 | 49 | 48 | 47 | |
Shaft Output Diameter | 12.7mm | ||||
Motor Insulation Class | B orHigher | ||||
Max Temp rise | |||||
IM : Mounting Type | ResilientBase for Horizontal Belt Drive | ||||
Motor Duty | S1 -Continuous | ||||
THDMax permissible THD | 5% @High speed | ||||
Min Expected Life Time | 20000hours | ||||
ApplicableStandards | IEC60034 | ||||
Rotation | Clockwise | ||||
Standard | IEC60034 | ||||
stator Insulation Material | BMC | ||||
Switching frequency | 20KHz | ||||
Max Coggingtorque/torque ripple/Speed ripple | 1% | ||||
Common mode voltage | MAX 10% | ||||
Framesize | max frame size 56mm | ||||
MotorDrive and Controller | PowerFactor Correction min 0.95 | ||||
Harmonicscontent less than 5% THD | |||||
Adjustablespeed 300~3000rpm ± 20 rpm | |||||
SoftStarting | |||||
Lockedrotor detection | |||||
Onand off Timer | |||||
Distanceof controller to drive is 50m | |||||
RequiredProtection for Motor And Drive | Thermal Protection | ||||
Short Circuit Protection | |||||
dv/dt | |||||
di/dt | |||||
over load | |||||
Controller minimum required options | Ambienttemperature Control | ||||
AutomaticOn/Off | |||||
TimerOn/Off | |||||
MotorOn/Off | |||||
/ | Adjustablethree Speeds control /Selection | ||||
WaterPump On/Off | |||||
