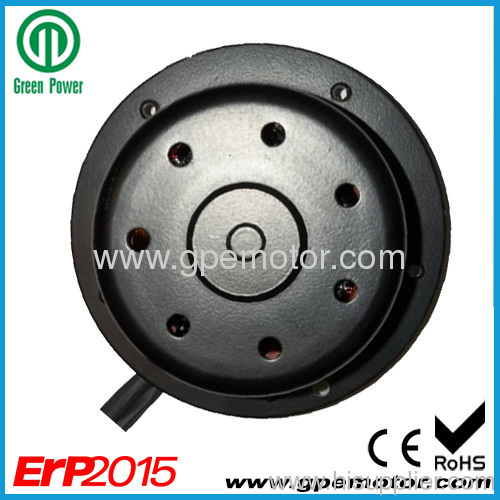

380V Brushless DC Motor for FFU fan filter units clear room

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: BLDC-E53S
Production Capacity: 5000pcs/m
Delivery Date: 25days
Shape: Tubular
Protect Feature: Others
Function: Driving
Brand Name: Green Power
Power: 25W
Speed Control: 0-10V/PWM
Rated Current (Amp): 2.34
Materials: Housing made of aluminum
The insulation Class: F
Means of Transport: Ocean,Land,Air
Packing: Carton and Pallet
Structure: Others
Phase: Three Phase
Speed: Variable Speed
Usage: Others
Voltage: 20V
Rated Speed: 15500-17000rpm
Voltage Range (VDC): 18-22
Ambient Temp (oC): -20° C to 55° C
Diameter: 53mm

High efficiency FFU-fan filter units with EC fan brushless motor, 100% controllable by 10V/PWM signal with RS485 MODBUS or LONWORKS protocol, ErP2015.

Specifications of FFU fan filter units Brushless DC Motor for clean room and laminar flow systems

· Electronically commutated Motor
· Input voltage: AC230V 50/60Hz
· NTC or Termal Switch or PTC protection
· Rated power: 250W
· Rated speed: 0~1400rpm
· Insulation Class: B
· Speed control: 0-10V/PWM
· CE, CCC, TUV, ErP 2015 compiant.

The outline of 250W E FFU fan filter units Brushless DC Motor for clean room and laminar flow systems
Intelligent control 400VDC EC FFU Fan Motor and fan controller for clean rooms and Laminar Flow Systems


What is the advantages of our brushless dc fan motor in FFU~Fan Filter Units for clean room and laminar flow systems.

A. 50%~60% energy saving than AC motor.
B. Intelligence remote control by RS485 MODBUS RTU and Lonworks network protocol.
C. BLDC motor with electronic communitated technology.
D. ErP2013, ErP2015, CE, CCC, RoSH compliant.
E. available in 300W, 500W, 700W, 1000W and 1500W.
F. optional Fan controller, EC centrifugal fan, repeater, etc.
G. Low price and good service, saving your money.
